Tilt and Turn Window Flyscreens

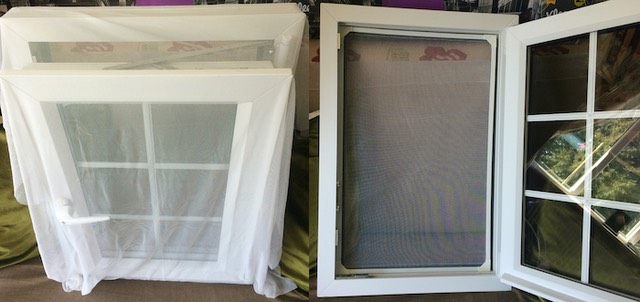

Flyscreen tilt turn


The simple solution is to use the simple screens on the left. It works well when the window is tilted. The adhesive hook tape goes around the edge of the frame and the material, find them here. Simple Window Kits

The neatest and best looking tilt and turn flyscreen solution is to use the Magnetic Flyscreen Frame system.

What are they? A simple magnetic window insect screen covering that completely cover the area to stop flies, spiders, mosquitoes etc on Tilt and turn windows..

Sizes and Colours? White in 75 x 75cm (with off white corners), 80 x 80cm, 100 x 120cm, 150 x 150 cm and 200cm x 150cm but are cut to fit smaller windows. The frame is 14mm wide and the magnet 10mm wide. If you have a very unusual size then by all means get in touch if you need advice.

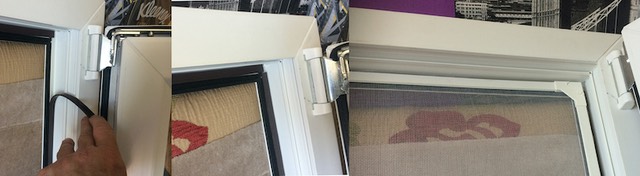

Flyscreen Tilt and turn fitting


Easy to Fit? Yes. The self adhesive flat magnetic fits around the inside of the open frame. This magnet is just a couple of milimetres thick so that the window can be shut onto it. Then make up a plastic frame to size with supplied corners, place material over it, clip in place with magnetic lengths, cut excess flyscreen material off.  This frame can then be inserted into the fully opened Tilt and Turn and it will attach to the magnet. For your information the frame is 14mm wide, 4mm thick and the widest part is the corner at 6mm thick.



SEE THE FITTING INSTRUCTIONS

Easy to Use? Simply open the window fully on the side. Insert screen into the space and against the magnet on the inside of the frame lip. PLEASE NOTE THAT IN ORDER TO SHUT THE WINDOW THE FRAME MUST BE REMOVED, the self adhesive magnet that holds the frame in place remains.

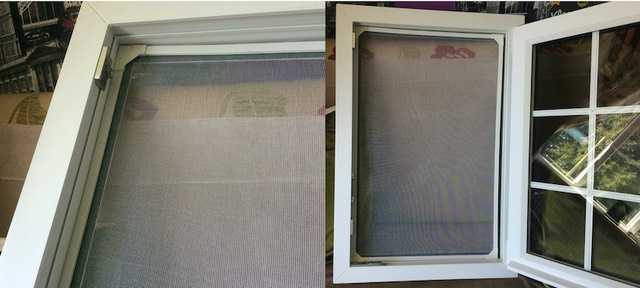

Flyscreen tilt and turn fitting 2

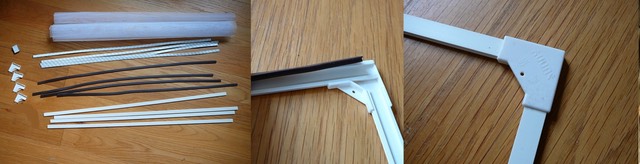

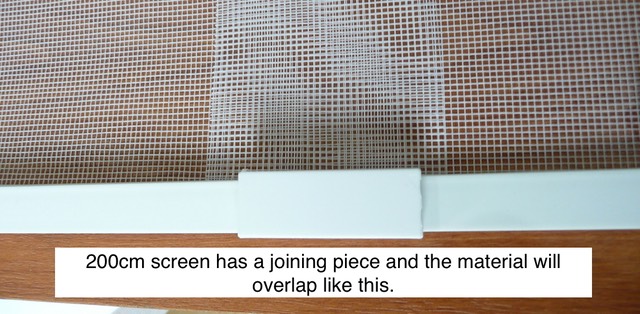

What you Get: White fibreglass flyscreen material. 4 pieces of plastic frame, 4 corners, 4 pieces of magnetic strip, 4 pieces of adhesive magnetic strip. (with the largest frame you get two 1m frame, plus a joining piece and also when you are covering an area of up to 2m long and over 1.2m wide then you will get two pieces of flyscreen material which will overlap, but they will be flush and very tight, see picture below)

flyscreen-magnetic-picture
flyscreen magnetic window 200cm


Suitable for? Domestic and light commercial environments.

Want to make extra windows out of one kit? Do your calculations and buy a set of off-white corners, the design may not be identical to the existing corners pictured below for £6.99. We also have extra magnetic and adhensive tape, plus 4 addition 48 cm pieces of frame for £9.99.

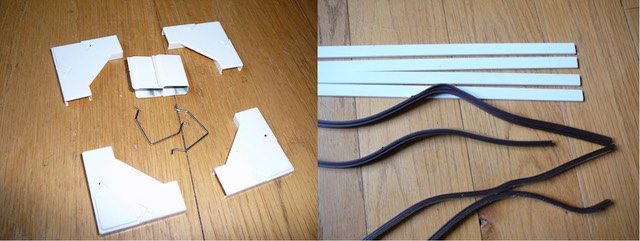

magnetic screen parts


How are they Posted?: Buyers in Northern Ireland, Channel Islands, Isle of Wight, Scottish Highlands and Islands, there will be an extra charge. Eire will be more.  See Postcode listing on the Delivery Information Page but if in doubt and if you live in any of these areas, Europe or the Rest of the World please contact us for a delivery quote.

NEED TO PUT MIDGE MESH IN YOUR SCREENS? Please note this material is 1.2m wide. Follow this link...


White 75 x 75 cm (29.5 x 29.5 inches) £25.99 Free Postage

add to cart


White 80 x 80cm (31.5 x 31.5 inches) Magnetic Frame £28.99 Free Postage


White 100 x 120 cm (39.5 x 47.0 inches) £31.99 Free Postage

add to cart


White 150 x 150 cm (59 x 59 inches) £37.99 Free Postage

add to cart


White 200 x 150 cm (78.5 x 59 inches) £46.99 Free Postage


Set of Four Corners £6.99 Free Postage

add to cart


Set of two profile joining pieces £2.99 Free Postage


Set of Four Pieces of frame 48 cm with magnet and self adhesive tape £9.99 Free Postage

add to cart

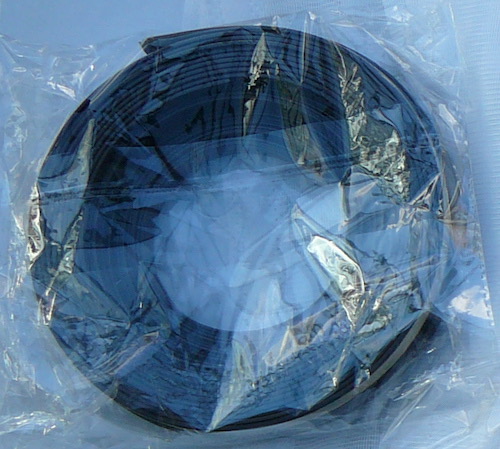

Magnet reel


4M of magnet flat (self adhesive) and grooved magnet £19.99 Free Postage

add to cart


Buyers in Northern Ireland, Channel Islands, Isle of Wight, Scottish Highlands and Islands, there will be an extra charge. Eire will be more.  See Postcode listing on the Delivery Information Page but if in doubt and if you live in any of these areas, Europe or the Rest of the World please contact us for a delivery quote. (NOTE THAT YOU MAY BE SUBJECT TO IMPORT DUTIES IN YOUR COUNTRY).


Special Delivery • Extra Payment Options

If you want guaranteed next working day SUSPENDED(Tues-Fri) delivery on all items please click the drop down menu and pay £10.  You must however, place your order before 11am the day before you want the item. No Saturday Delivery unless you contact us first.

ADD £10 NEXT WORKING DAY DELIVERY SUSPENDED


If further payment is required e.g. £20, then Add £5 and enter 4 in the quantity box to make £20

ADD £1

flyscreen button


ADD £3

flyscreen button


ADD £5

flyscreen button
